MS Super 3E Steam Generator Features
- Single operating platform does it all from the most basic installation to the most elaborate
- Easy to add plug & play spa therapy accessories
- Can be installed up to 60 feet away
The Intelligent Steambath™
- Exclusive microprocessor operating system
- Precision temperature probe for optimal steamroom temperature control
- Removable and serviceable industrial strength heating elements
- Integrated time cutoff feature
MS Super 3E Specifications
||576 to 675 Cubic Feet
(Follow Calculations Below)
||17.0" L x 18.5" H x 7.88" D
|Amps (240V, 1 Phase)
‡ Wire size (AWG) based on minimum 90˚C rated THHN copper conductors. Refer to the National Electrical Code for other types of conductors.
* Dimensions are for generator only, without AutoFlush® or plumbing features.
†† Water usage based on 20 minutes of operation.
Calculating Your Steam Generator Size
Room volume and construction materials are important factors.
1) Begin with Room Cubic Feet
= Length x Width x Height.
2) Factor in Construction Materials:
- For natural stones: Add 100%
(natural marble, stone, shale, glass block or concrete)
- For ceramic or porcelain Add 30%
(tile on cement board or mortar bed)
Total = size of steam generator recommended.
- Guidelines for selecting the steambath generator are recommendations only.
- For steam rooms constructed of acrylic or synthetic materials, select next lower-rated model.
- The Total Volume allows for up to 60 feet of insulated steam line from the steam generator to the steam room.
Please see Extra Images in Carousel of Images details of each Control Package.
- iDream Package
- iButler Package
- AirButler Package

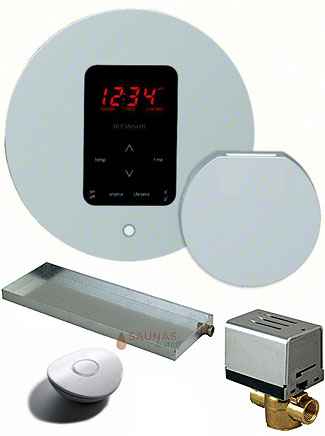

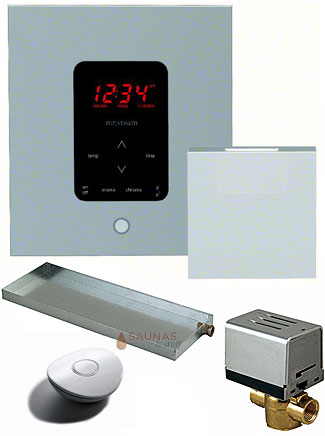

- Butler Package
Steam Control Finishes
Designer Finishes to choose from.
Polished Chrome is Standard (included in price).
Steam Options - A la Carte
Home Wizard System
- Easily connects to new or existing home automation systems
- Comes with interface module and remote control FOB in black or white
- Suitable for all E-Series generators
5 Pack includes 1 each:
- Energizing Mint
Chakra Blend Essential Oils
7 Pack includes 1 each:
- Red Vitality
- Invigorating Orange
- Yellow Awakening
- Green Harmony
- Celestial Blue
- Mystic Indigo
- Violet Nirvana

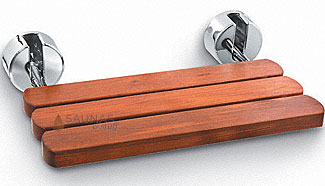

- Teak wood, beautifully finished and sealed
- Seat drops for use, folds for storage
- Polished Chrome, Satin Nickel or Brushed Nickel
- Dimensions 19 3/4” w x 13 1/4” d x 1 1/4” h
- Rated max. 250 lbs.

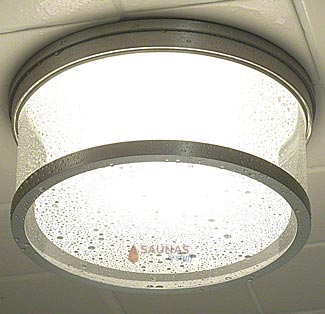

LED Recessed Steambath Light
- Low voltage LED light
- 600 Lumens
- UL Listed
- Includes 120 VAC LED Driver
- Includes rough-in bracket
- 3 ½ “ high x 4 ¼” diameter
