Pre-Cut Sauna Kit (4' x 6' x 7') | Cedar Sauna from Saunas & Stuff

MORE INFO

ROOM PLANS

Features
Door
Heater
Opt. 1
Opt. 2

Pre-Cut Sauna Standard Features

Easy-assembly, Pre-Cut sauna room includes:
• Grade A and better clear select Western Red Cedar for its natural resistance to decay.
• Cedar for interior walls, ceiling and trim
- 1/2" thick x 3.5" wide "V Groove" tongue and groove
• Pre-assembled cedar duckboards for floor walk area
• Pre-hung door, door stop, trim and door handles
• Pre-assembled benches (20 Inches Deep), bench supports and cedar fascia
- 1" x 4" bench tops on 2" x 4" framing
• Eased edges on all benches and trim, using vertical grain material for stability
• Blind fastening for all floor grids
• 3 Cedar Wood Vent Grills (4.5” high x 9 5/8” wide, with a Rough Opening = 3”H x 7¼W)
• 1 Ceder Wood Open/Close Vent (4 ¾ x 16” with a Rough Opening = 2¾"H x 7”W)
• Warranty: 5 Years Residential, 1 Year Commercial

Standard Sauna Accessories Package:
($140.00 Value - Free with sauna purchase)

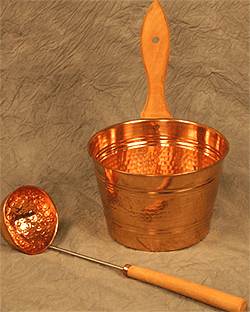

	Sauna thermometer Sauna rocks Sauna light Water bucket and ladle Head rest
Pre-Cut Sauna Installation Guide

Pre-Cut Sauna Door Choices

Door is pre-hung in a door jamb (Note: Door Jamb depth will be built based on the wall thickness dimension you provide) and comes complete with a spring hinge and wooden door handles. Rough opening for these doors is 2' 2" x 6' 10".

	Standard Door (included in package price) 2' x 6'8" Fir door with a clear 16" x 66" Rectangle CLEAR tempered Thermopane glass.
	Door D1 2' x 6'8" Cedar door with a clear 10"x 42" rectangle tempered Thermopane glass.			Door D1T 2' x 6'8" Cedar door with a Tinted 10" x 42" rectangle Thermopane glass.
	Door D2 2' x 6'8" Cedar door with a clear 16" x 66" rectangle tempered glass.			Door D2T 2' x 6'8" Cedar door with a Tinted 16" x 66" rectangle tempered Thermopane glass.
	Door D3 2' x 6'8" All glass tempered door. Very little tint (No spring hinge on glass door)			Door D4 2' x 6'8" Cedar door with a tinted 9" diamond tempered glass.
	Door D5 2' x 6'8" Cedar blank door (No glass).

Tylö Sauna Heater Choices

Today’s Tylö heaters are the pinnacle of sauna technology. The difference in class really begins to show once the heater is switched on.
Sauna rocks included with heater.

Controls located at the bottom front panel.	SPORT U 2/4 240v, 2.3kW 10 amp draw or 4.6kW 20 amp draw. For saunas up to 120 or 210 cubic feet.
	SPORT U7 240v, 7kW, 30 amp draw. For saunas from 175 to 320 cubic feet.
	SPORT U8 240v, 8.3kW, 34 amp draw. For saunas from 275 - 440 cubic feet.
Controls located at the top of front panel.	SUPERSPORT 2/4 240v, 2.3kW 10 amp draw or 4.6kW 20 amp draw. For saunas up to 210 cubic feet.
	SUPERSPORT 7 240v, 7kW 30 amp draw. For saunas from 175 - 320 cubic feet.
	SUPERSPORT 8 240v, 8.3kW 34 amp draw. For saunas from 275 - 440 cubic feet.
	SE-U7 240v, 7kw, 30 amp draw. Requires CC10, 50, 300 or 300T controls (sold separately). For saunas 175-320 cubic feet.
	SE-U8 240v, 8.3kw, 35 amp draw. Requires CC10, CC50, or CC300 controls (sold separately). For saunas 275-440 cubic.
Combi models have an added Steam Generator Feature for Maximum Humidity	Combi U7 240v, 7kw, 30 amp draw. For saunas 175-320 cubic feet.
	Combi U8 240v, 8.3kw, 35 amp draw. For saunas 275-440 cubic.
Deluxe 11 shown. Deluxe 7 and 8 look like SE models.	Deluxe 7 240v, 7kw, 30 amp draw. Requires TS30-01, CC10, 50, 300 or 300T controls (sold separately). For saunas 175-320 cubic feet.
	Deluxe 8 240v, 8.3kw, 35 amp draw. Requires TS30-01, CC10, CC50, or CC300 controls (sold separately). For saunas 275-440 cubic.
	Deluxe 11 240v, 10.7kw, 45 amp draw. Requires TS30-01, CC10, CC50, or CC300 controls (sold separately). For saunas 320-640 cubic.
Note: Controllers are mounted on outside of sauna, on wall next to door.
	TS30-01 (Deluxe htrs. only) Mechanical control that includes a 60 minute timer, mechanical thermostat, and a pilot lamp.
	CC-10 (SE and Deluxe htrs.) 1 hour run time w/10 hour preset time in 1 hour intervals. Light diodes indicate settings.
	CC-50 (SE and Deluxe htrs.) Some time programming capabilities as well as a digital temperature settings.
	CC-300 (SE and Deluxe htrs.) Advanced model with multiple run times and 24/7 programming capabilities as well as a digital temperature settings. Also has 4 energy saving stand-by modes.
	Low-Voltage Cable For connecting a digital controller (CC-10, CC-50, CC-300) to an SE or Deluxe heater.
